0 Downloads:Technical Data Sheet
M50 post support U post base for securing in cement

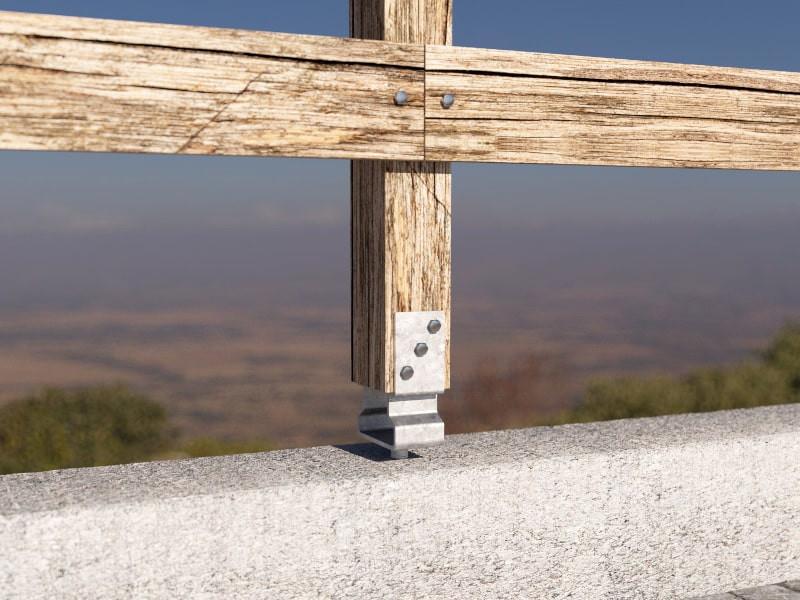

Regularly used in Staddle Stones or pad to keep the post or column off the stone and to prevent wind lift. The bar can be cut on site to accomadate.
Rothoblaas in partnership with Canopy Products brings you the Holz Technic brand.
S235 Hot dip galvanised for service classes 1, 2 and 3 U post base.
Used for fence posts, decking supports, bollards, railing posts, securing pergolas and garden structures together with other Timber posts/columns.
Suitable for tanalised posts and our Engineered posts/columns.
Please see our range of POSTS designed to fit these bases.
Architects/designers CAD file available.

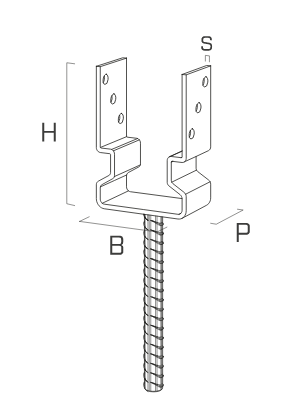

B* is the internal measurement
| CODE | B [mm] | P [mm] | H [mm] | S [mm] | PCS. |
| M5070 | 71 | 60 | 150 | 5 | 1 |
| M5090 | 91 | 60 | 150 | 5 | 1 |
| M50100 | 101 | 60 | 150 | 5 | 1 |
| M50120 | 121 | 60 | 150 | 5 | 1 |
Price reflects single item. Excludes delivery. Delivery usually 2 working days.
If showing out of stock, please contact us as normally delivery can be made within 7 to 10 days.
Bulk orders please contact us as discounts may apply and the most economic delivery charges can be agreed.
Due to variances in Timber finishes some adjustment to the post/column might be required on site with some of the bases.
