M52 post support Open post Base for embedding in concrete
Rothoblaas in partnership with Canopy Products brings you the Holz Technic brand.
S235 Hot dip galvanised for service classes 1, 2 and 3 square open pillar holder.

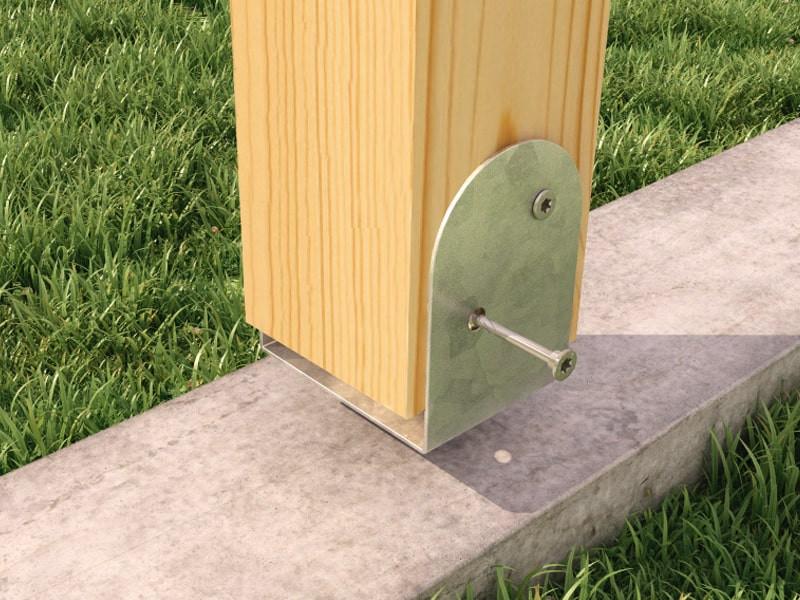

Used for fence posts, decking supports, bollards, railing posts, securing pergolas and garden structures together with other Timber posts/columns.
Suitable for treated and our engineered and solid chamfered posts.
Please see our range of POSTS designed to fit these bases.
Architects/designers CAD file available.

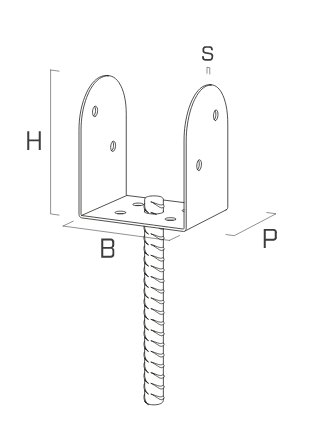

B* is the internal measurement.
| CODE | B [mm] | P [mm] | H [mm] | S [mm] | PCS. |
| M5290 | 91 | 70 | 120 | 2.5 | 1 |
| M52100 | 101 | 80 | 120 | 2.5 | 1 |
| M52120 | 121 | 100 | 140 | 2.5 | 1 |
*Price reflects single item. Excludes delivery. Delivery 2 working days.*
If showing out of stock, please contact us as normally delivery can be made within 7 to 10 days.
Bulk orders please contact us as discounts may apply and the most economic delivery charges can be agreed.
Due to variances in Timber finishes some adjustment to the post/column might be required on site with some of the bases.
